Slimline

Shower Drain

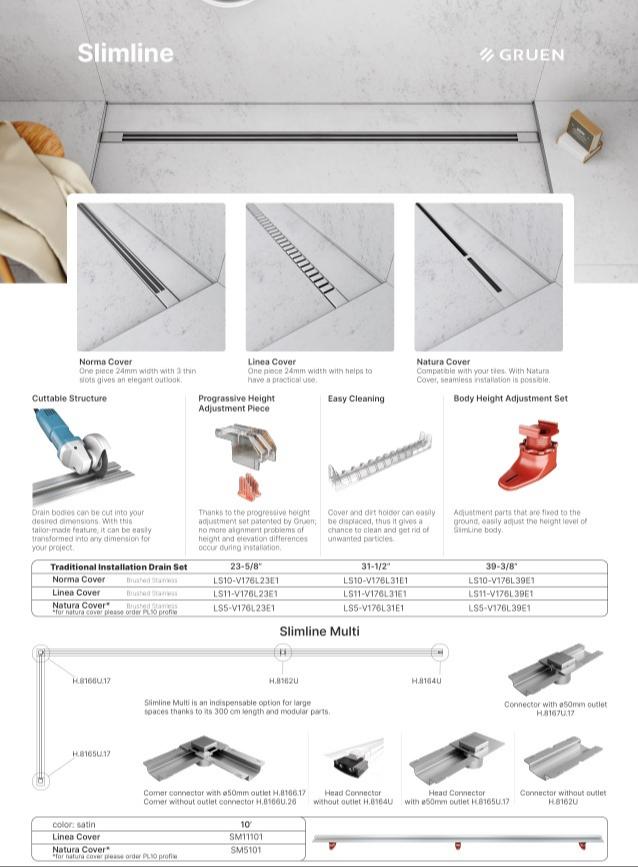

Slimline

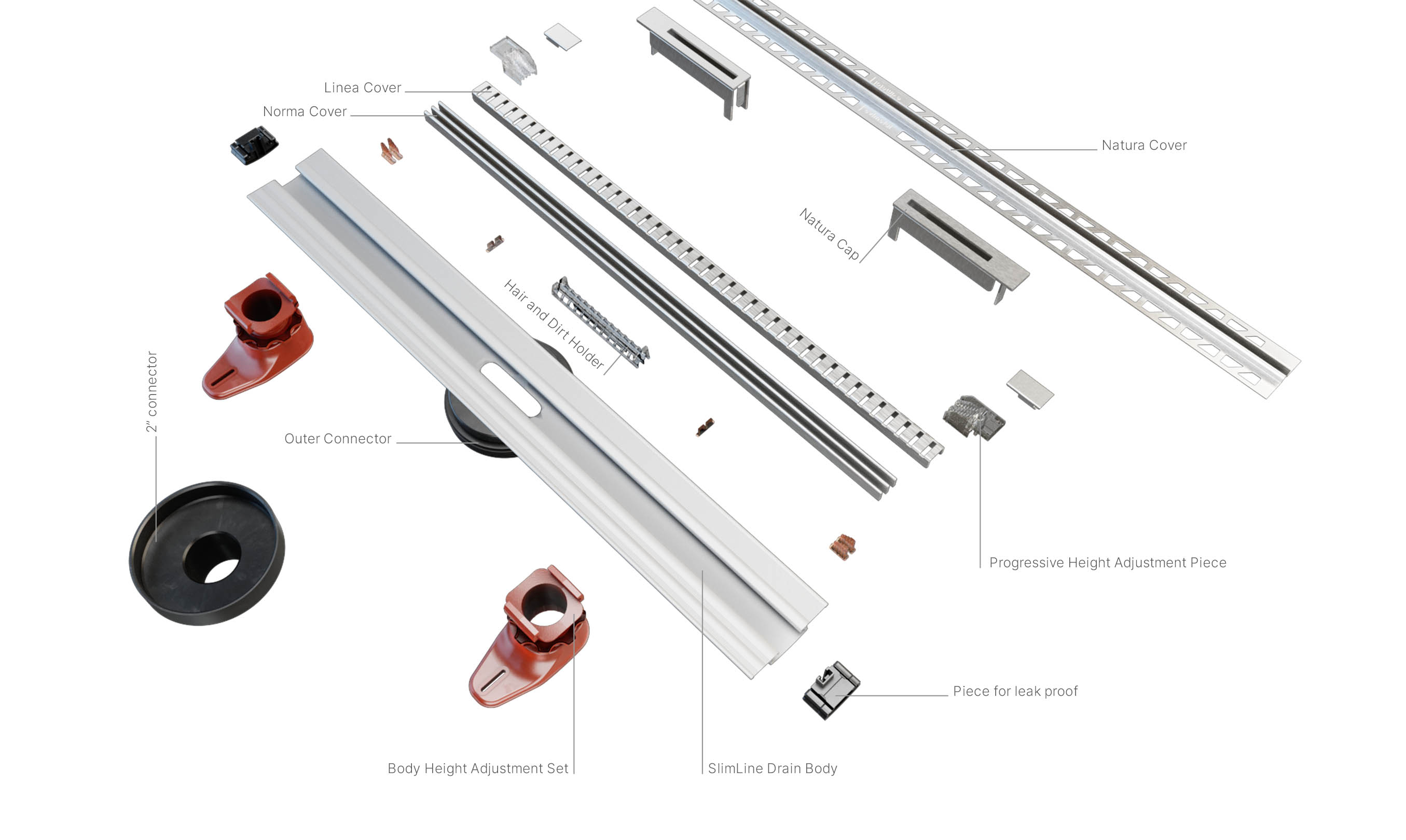

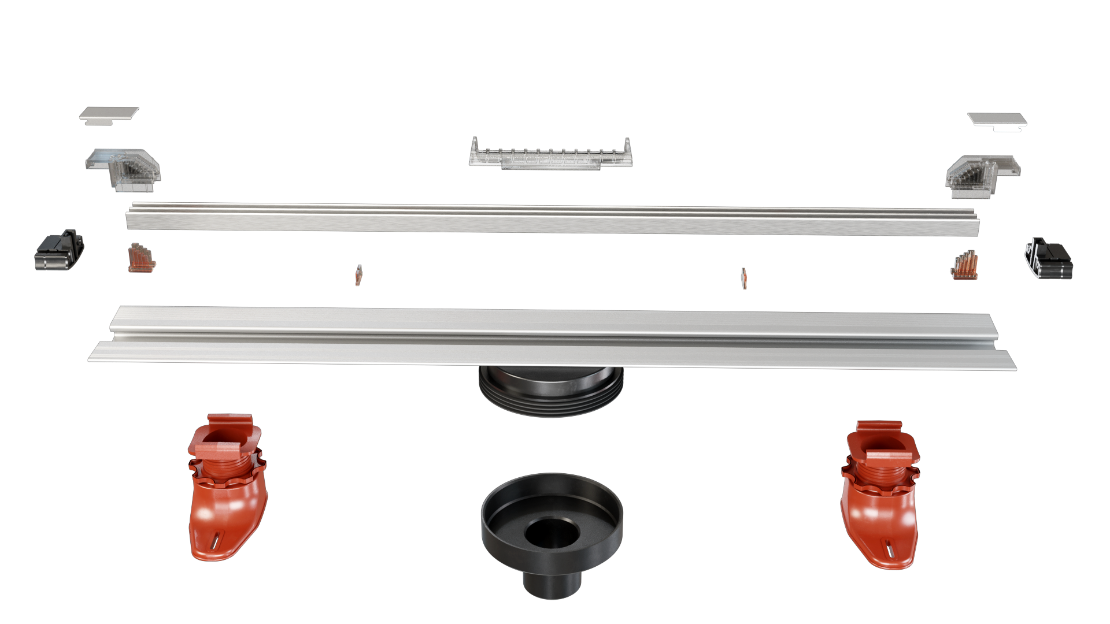

Introducing SlimLine by Gruen Systems: a uniquely innovative drain design marries functionality with aesthetic appeal. Perfect for indoor and outdoor use, SlimLine features a versatile cable structure that can extend to multiple drain outlets and effortlessly turn at 90 degrees. Crafted from sleek stainless steel, this minimalist product is available in three stylish drain cover styles. Whether your project is technically demanding or requires a beautiful finish, choose SlimLine for superior performance and elegance.

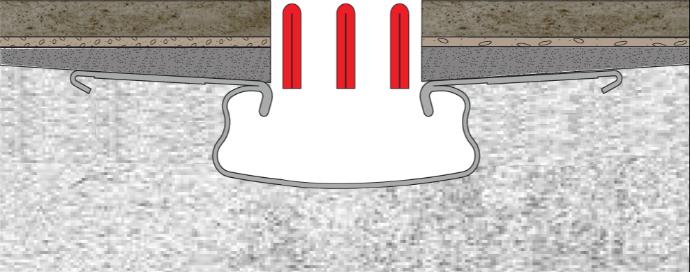

Norma

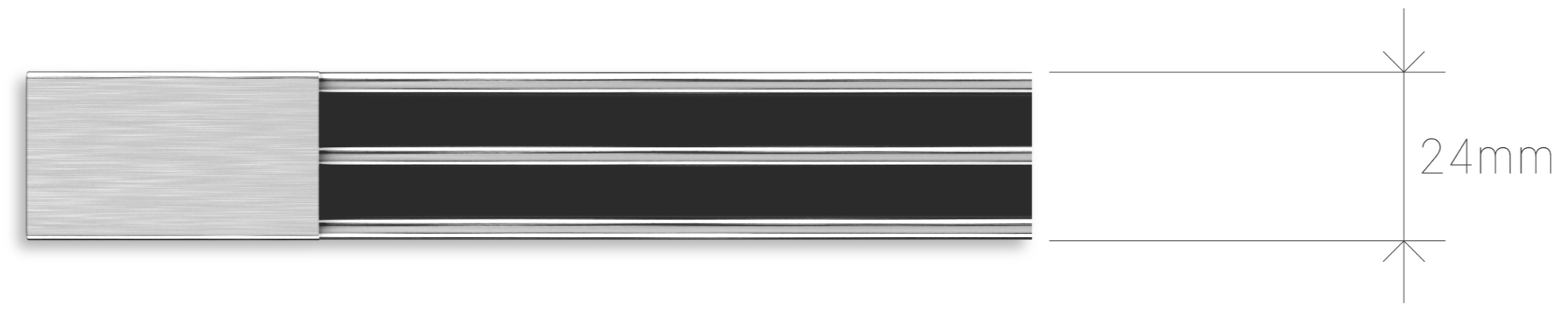

One piece 24mm width with 3 thin slots gives an elegant outlook.





Linea

One piece 24mm width with helps to have a practical use.





Natura

Compatible with your covering material. With Natura Cover seamless installation is possible, compitable with each covering material you will use.


   It is Slim as we said

   Just 24mm thick

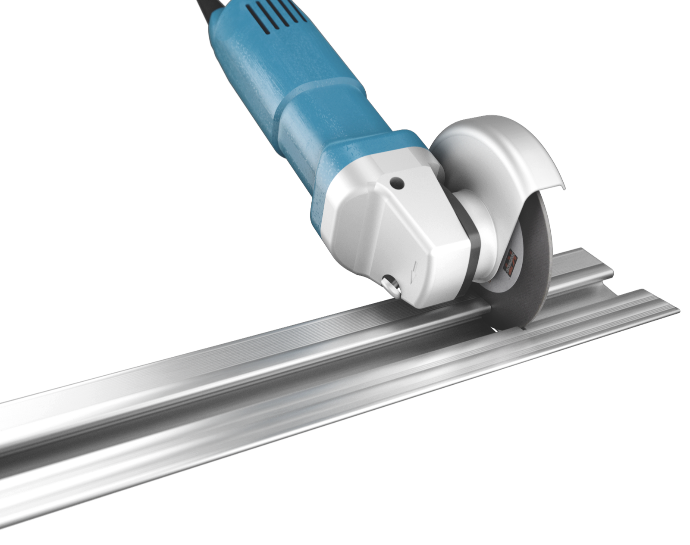

Cuttable Structure

Drain bodies can be cut into your desired dimensions. With this tailor-made feature, it can be easily transformed into any dimension for your project.

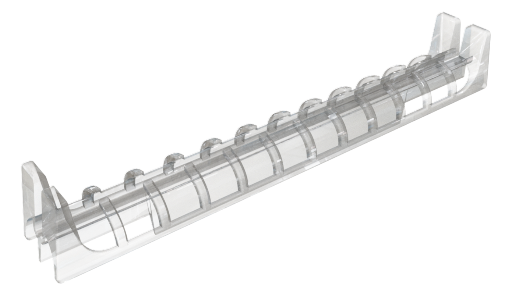

Easy Cleaning

Cover and dirt holder can easily be displaced, thus it gives a chance to clean and get rid of unwanted particles.

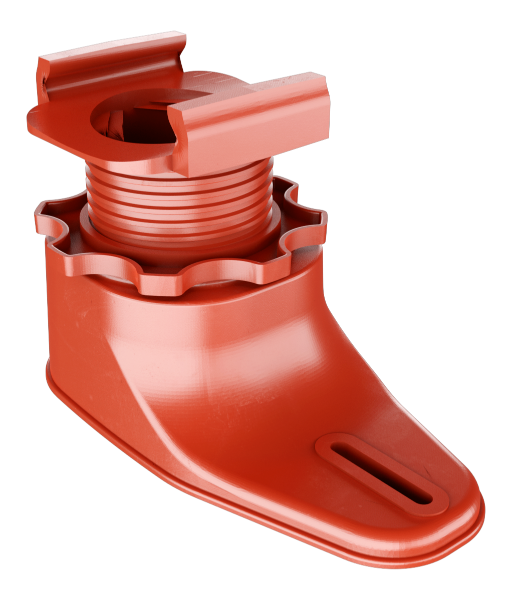

Body Height Adjustment Set

Adjustment parts that are fixed to the ground, easily adjust the height level of SlimLine body.

Prograssive Height Adjustment Piece

Thanks to the progressive height adjustment set patented by Gruen; no more alignment problems of height and elevation differences occur during installation.

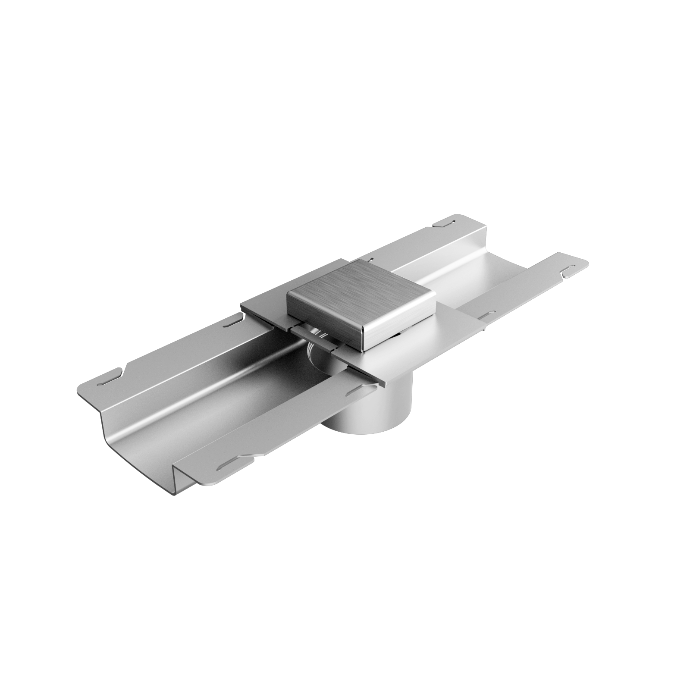

Connectors

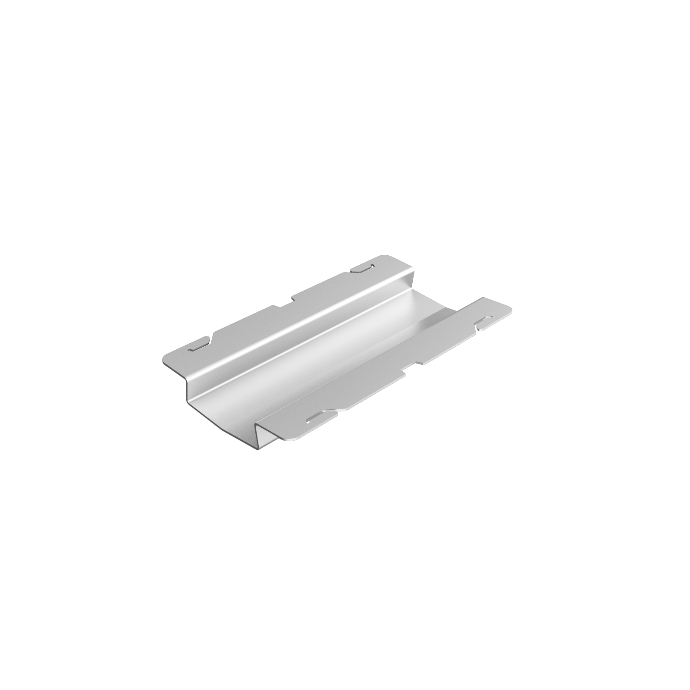

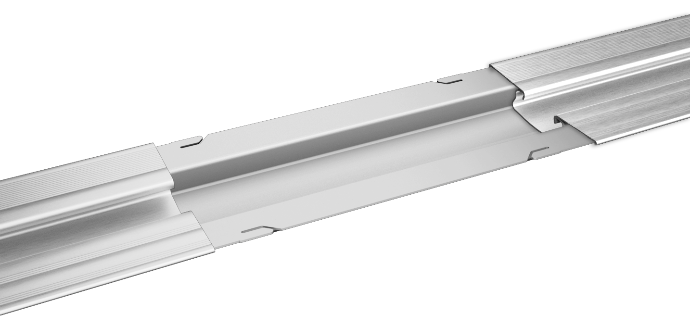

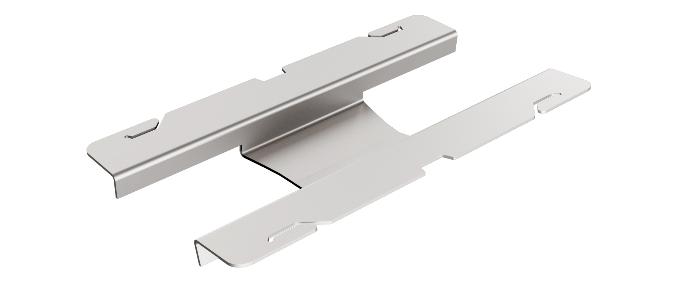

Serial Connector - H.8162U

It is a part which connects SlimLine to another without outlet.

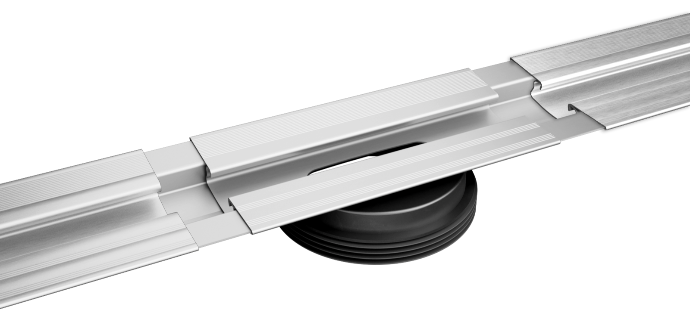

Serial Connector with 2" outlet - H.8167U.17

It is a connector part which has 2" outlet.

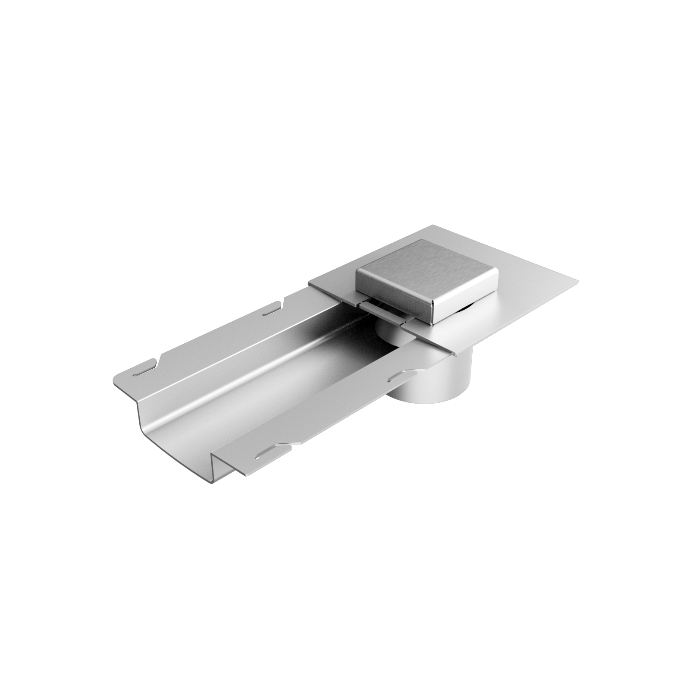

Head Connector - H.8165U.17

It is a end part with 2" outlet.

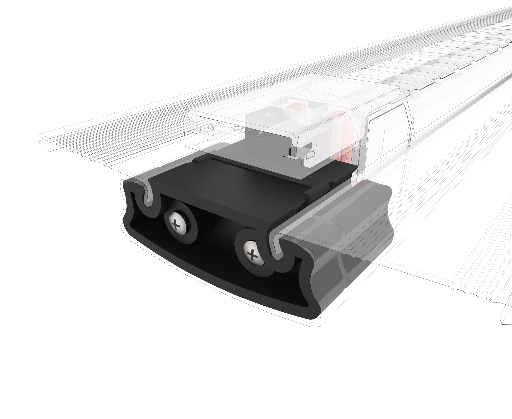

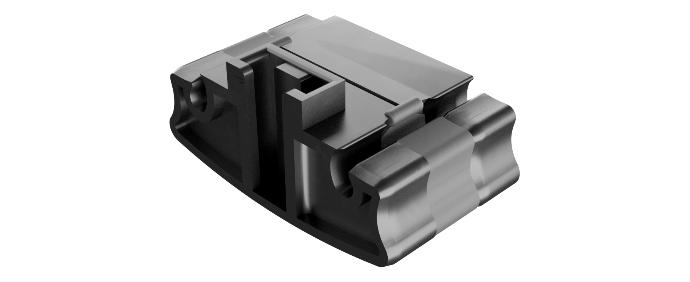

Head Connector - H.8164U

It is a end part with waterproof gasket.

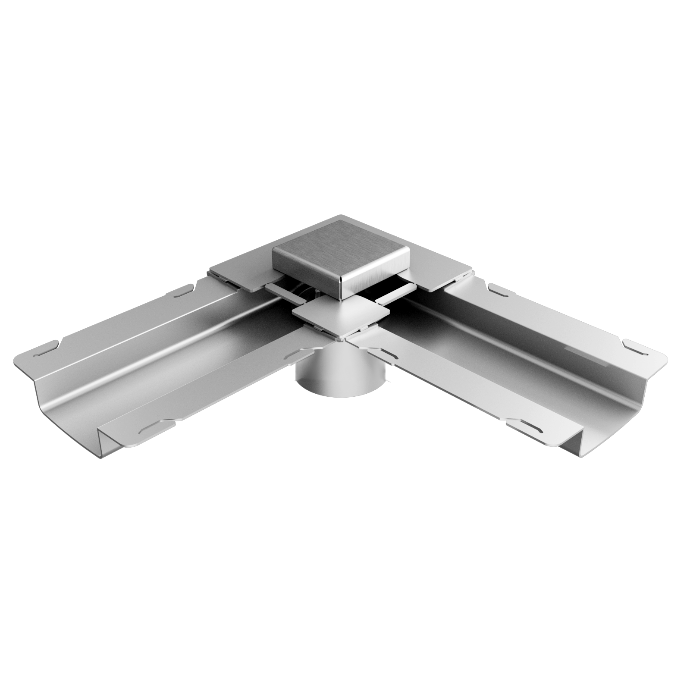

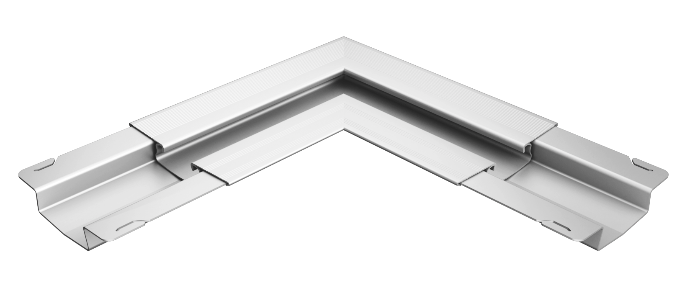

Corner Connector - H.8166U.17

It is a corner connector part which provides 90 degrees continuity with 2" outlet.

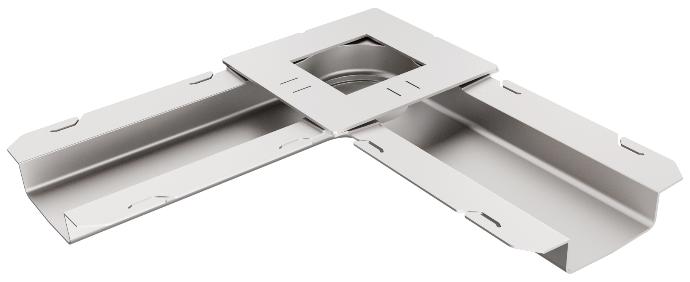

Corner Connector - H.8166U.26

It is a corner connector part which provides 90 degrees continuity without outlet.

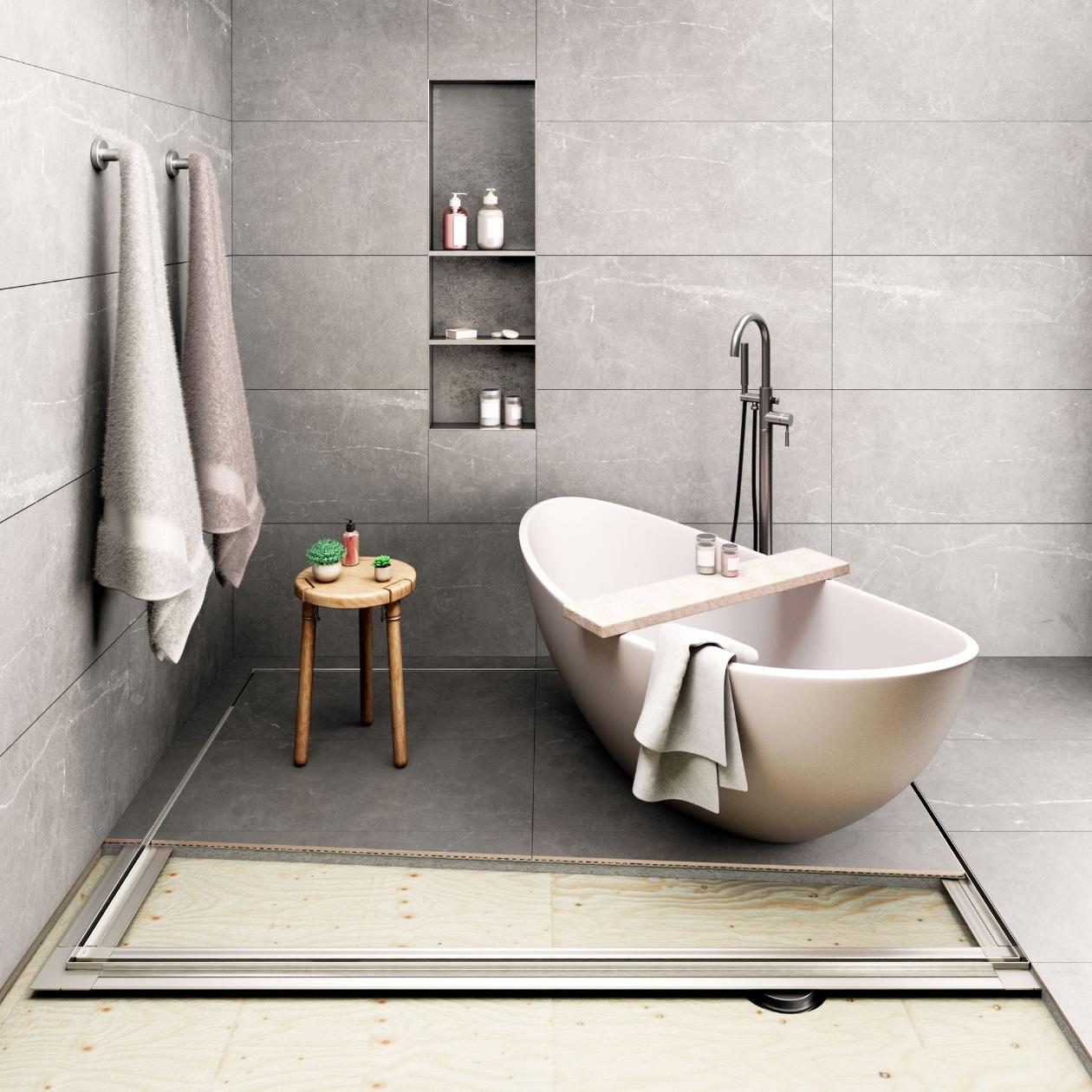

Usage Options

 SlimLine shower channel can be located different areas with different dimensions,
such as in front of the walls, middle of the shower areas, end of the shower areas etc.
